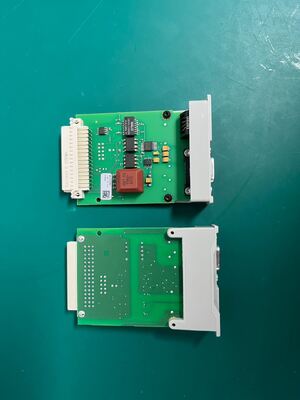

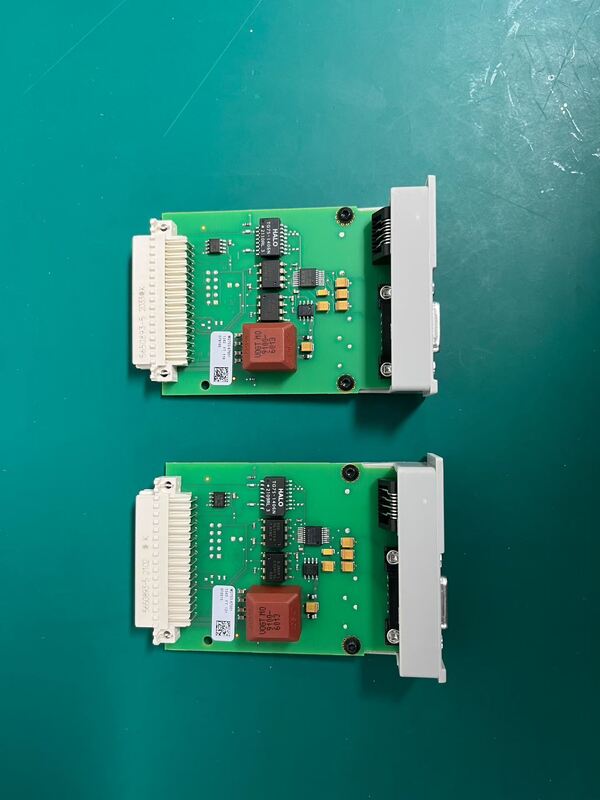

M2703-67001 AVALON FETAL LAND CARD
جزئیات محصول:
| محل منبع: | اصل |
| نام تجاری: | PHILIP |
| شماره مدل: | M2703-67001 |
پرداخت:
| مقدار حداقل تعداد سفارش: | 1 |
|---|---|
| قیمت: | Negotiation, pls contact me |
| جزئیات بسته بندی: | جعبه کارتن |
| زمان تحویل: | ظرف 1-2 روز کاری پس از تایید پرداخت |
| شرایط پرداخت: | T/T، وسترن یونیون |
| قابلیت ارائه: | 10 |
|
اطلاعات تکمیلی |
|||
| مدل: | FM20 FM30 | پ.ن: | M2703-67001 |
|---|---|---|---|
| سهام: | موجود است | گارانتی: | 6 ماه |
| بسته: | کارتن | ||
| برجسته کردن: | Avalon fetal monitor card,Fetal monitor replacement part,M2703-67001 fetal land card |
||
توضیحات محصول
Avalon FM20 / FM30 Network Card Specifications
1. Part Information
- Network Card Part No.: M2703-67001
- Alternative No.: 9001-18481C00A
- Hardware Type: Built-in PCI expansion card
- Applicable Models: Philip Avalon FM20 (M2702A), FM30 (M2703A)
2. Ethernet Specifications
- Interface: RJ45 port
- Speed: 10/100 Mbps auto-negotiation
- Network Protocol: TCP/IP (IPv4), DHCP / BOOTP
- Standard Compliance: IEEE P1073 Medical Information Bus (MIB)
- Transmission Mode: Unicast / Broadcast
- System Compatibility: Supports connection with OB TraceVue and IntelliSpace Perinatal system
3. Network Configuration
- IP Assignment: Default DHCP/BOOTP automatic acquisition; static IP configurable manually
- Network Requirement: Monitor and server PC must be in the same network segment
- Communication Port: LAN for perinatal system data transmission; RS232 reserved for EMR read-only access
4. Environmental & Certification
- Operating Temperature: 0–45 °C (without battery); 0–40 °C (with battery)
- Storage Temperature: −20–60 °C
- Humidity: 10%–95% non-condensing
- Certification: CE, FDA, ISO 13485
5. Main Functions
- Transmit real-time FHR, TOCO, maternal ECG waveforms and numerical data
- Support central monitoring station remote viewing, data storage and report printing
- Hospital system integration with HIS / EMR for medical data sharing
